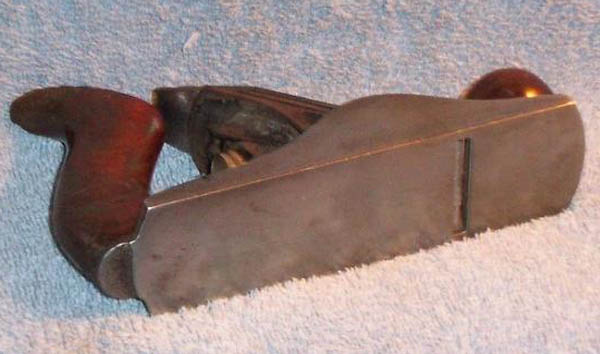

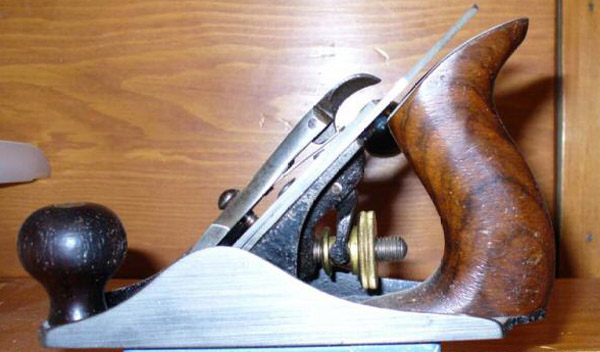

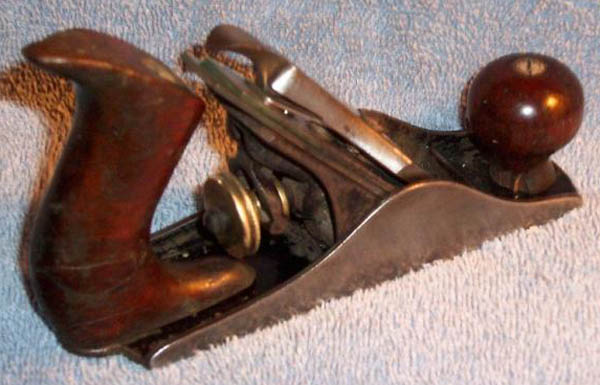

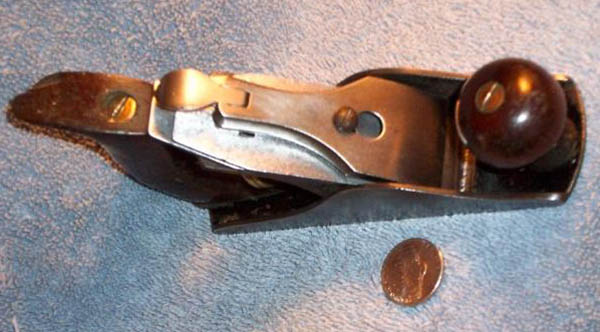

Stanley No. 1 Smooth Plane


Print Friendly, PDF & Email
Manufactured: 1869 to 1943
Length: 5-1/2 inches
Blade Width: 1-1/4 inches
Construction: Cast iron, rosewood handle & knob
Finish: Japanned
Features: Extra small
Uses: General purpose bench plane
Average Dealer Price: $1000 to $1600
Average eBay Price: $1200 to $1800
Type 1: $1600 to $2800
Type 2: $1400 to $2000
Type 3 to 12: $1200 to $1800
Counterfeit version: $150 to $300

Other Notes: These planes are not marked with a number cast into the bed and had no lateral adjustment lever. The trademark is stamped on the blade only. Sweetheart versions (1920-1935) often reach higher prices, but not always.

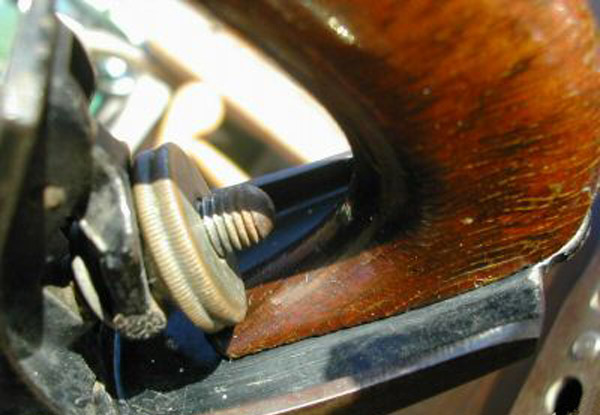

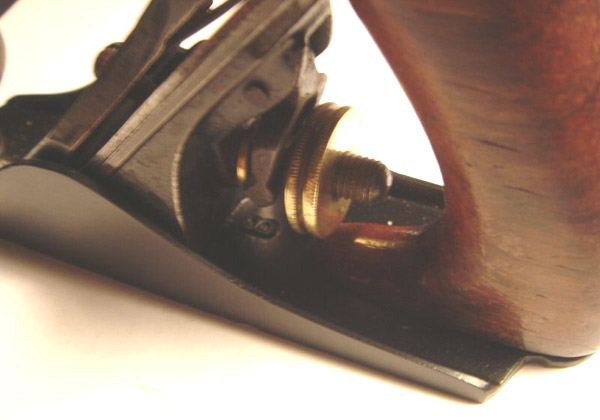

The counterfeit planes have a much rougher body, frog and lever cap casting, as well as badly shaped handles. The rear screw for the blade adjustment tilts upward rather that straight back. The blade is often stamped on both sides



Updated: 30th March, 2006

Stanley No. 1 Smooth Planes on eBay right now...

Stanley Bailey No 4 Smooth Bottom Plane 9 1 4 long 5 1 4 tall Made in USA
Stanley Bailey No 4 Smooth Bottom Plane 9 1 4 long 5 1 4 tall Made in USA $59.51
Time Remaining: 2h 21m
Buy It Now for only: $59.51
Stanley RH S12D131HD6 Electro Galvanized Smooth Stick Nail 3 1 4
Stanley RH S12D131HD6 Electro Galvanized Smooth Stick Nail 3 1 4 $151.79
Time Remaining: 3h 36m
Buy It Now for only: $151.79
Vintage Stanley Bedrock no 604 1 2 plane smooth sole round top
Vintage Stanley Bedrock no 604 1 2 plane smooth sole round top $249.99
Time Remaining: 8h 10m
Buy It Now for only: $249.99
Stanley Bailey No 5 1 2 PLANE Pat 10 15 SweetHeart Blade Smooth Bottom
Stanley Bailey No 5 1 2 PLANE Pat 10 15 SweetHeart Blade Smooth Bottom $42.00 (2 Bids)
Time Remaining: 9h 50m
Vintage Stanley Smooth Bottom Jointer Plane Made in England 9 1 2 long
Vintage Stanley Smooth Bottom Jointer Plane Made in England 9 1 2 long $49.95
Time Remaining: 11h 27m
Bostitch CR3DGAL 1 1 4 15 Coil Smooth Galvanized Roofing Nails 7200 Pack
Bostitch CR3DGAL 1 1 4 15 Coil Smooth Galvanized Roofing Nails 7200 Pack $47.99
Time Remaining: 1d 3h 40m
Buy It Now for only: $47.99
Stanley 216200 Smooth Rod 1 2 in Dia x 72 in L Steel Zinc Plated
Stanley 216200 Smooth Rod 1 2 in Dia x 72 in L Steel Zinc Plated $247.22
Time Remaining: 1d 5h 5m
Buy It Now for only: $247.22
BENCH SMOOTH PLN 2 1 2X9 3 4IN
BENCH SMOOTH PLN 2 1 2X9 3 4IN $53.18
Time Remaining: 1d 7h 5m
Buy It Now for only: $53.18
VINT COLLECT 9 1 4 LG STANLEY BAILEY NO3 SMOOTH PLANE 3 + LBS PHOTOS
VINT COLLECT 9 1 4 LG STANLEY BAILEY NO3 SMOOTH PLANE 3 + LBS PHOTOS $49.99
Time Remaining: 2d 8h 38m
Stanley No 4 1 2 Smooth Bottom Jumbo Smoothing Plane Type18 C1946 47 Very Nice
Stanley No 4 1 2 Smooth Bottom Jumbo Smoothing Plane Type18 C1946 47 Very Nice $86.50 (17 Bids)
Time Remaining: 2d 10h 1m


Sources: While many of the dealers prices for Stanley planes are largely set by John Walters’ book “Antique & Collectible Stanley Tools” it appears that eBay, while acknowledging the Walters guide somewhat, tends to march to it’s own beat and sets its own prices. For that reason - and the fact that eBay’s reach and customer base is huge - I’ve decided to include a separate eBay average price here. Other sources include: “The Antique Tool Collector’s Guide To Value” by Ronald S. Barlow, “Antique & Collectible Stanley Tools” by John Walter, “The Stanley Plane” by Alvin Sellens, “Patrick’s Blood & Gore” by Patrick Leach, various auctions and sales of collectable tools and my own compilations of prices realized, observations and notes over the past 20+ years.
