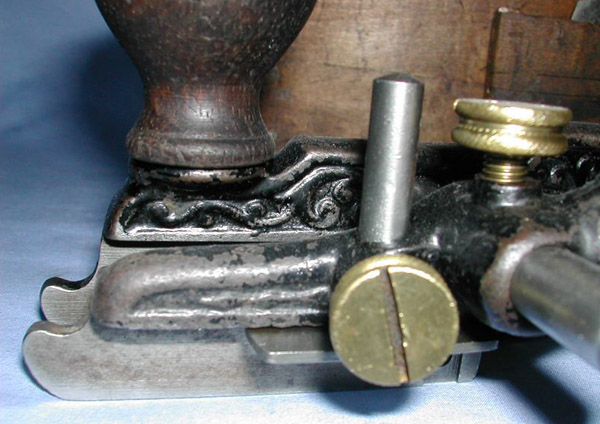

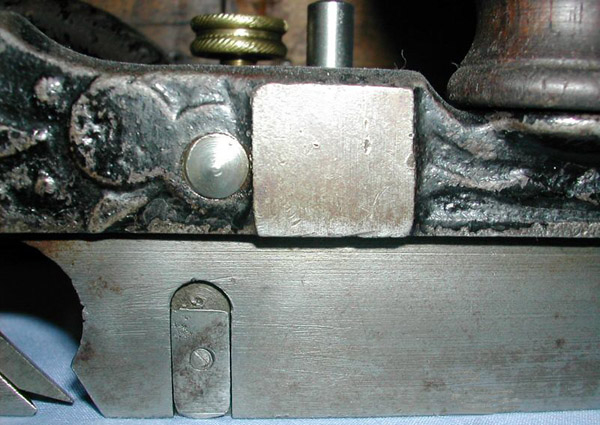

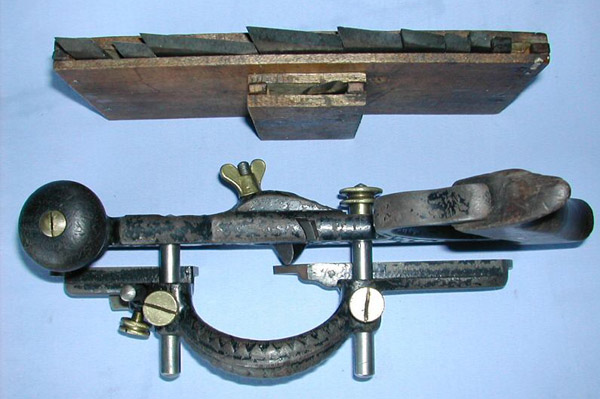

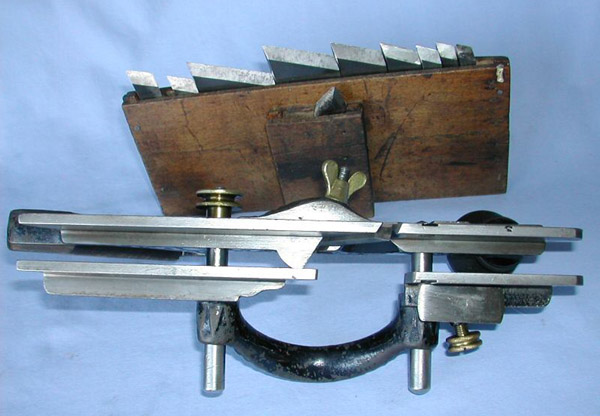

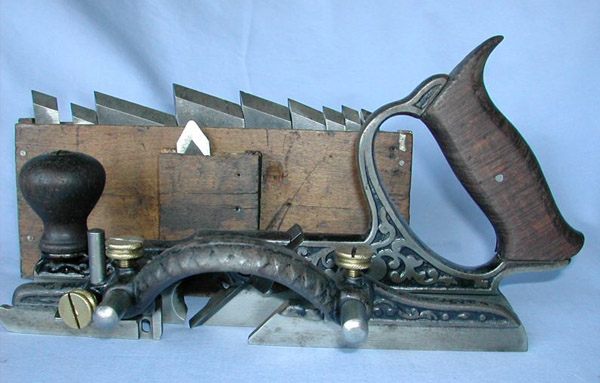

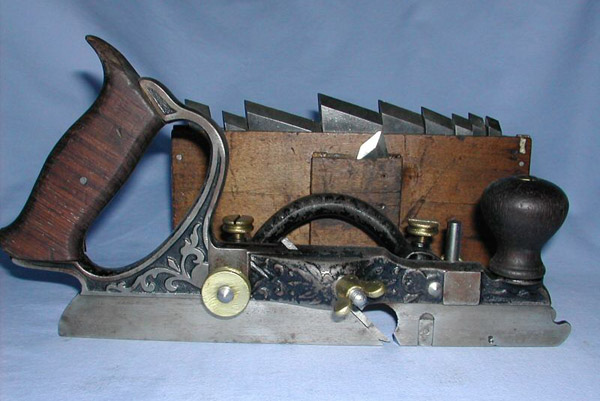

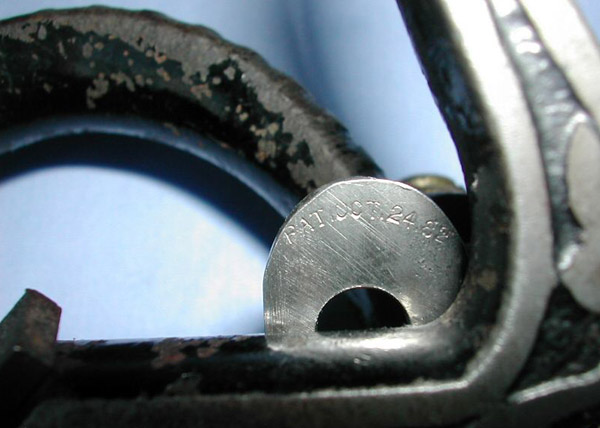

Stanley No. 47 Adjustable Dado Plane


Print Friendly, PDF & Email
Manufactured: 1876 to 1923
Length: 10-1/2 inches

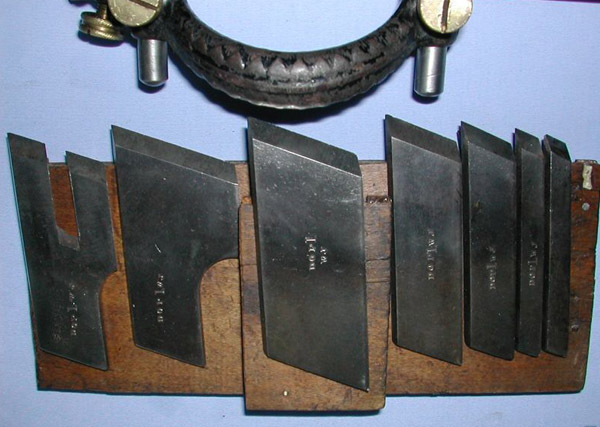

Blade Width: 5 provided: 3/8, 1/2, 5/8, 7/8, 1-1/4 inch. A 13/16 inch cutter was offered with some of the later type planes
Construction: Cast iron, rosewood handle & knob
Finish: Nickel plated. Earlier types japanned
Features: Skewed cutter, adjustable depth stop, spurs and slitter, 5 interchangeable cutters
Uses: Plow, filletster, dado and match plane
Average Dealer Price: $300 to $650
Average eBay Price: $270 to $220
Type 1: $400 to $800
Type 2: $350 to $650

Other Notes: Not marked with the No. 47 as a No. 46 casting was always used. Some of the nickel plated later types are identical to later types of the No. 46, except without a fence and also with fewer cutters. The right front depth stop housing was not ground off like it was on the earlier japanned types. There was no guard plate provided on the No. 47 planes sliding section and, therefore, no holes were required for it. Type 1 also has wedge spurs and is actually a modified No. 46 Type 2 plane.


Updated: 29th July, 2006
