Stanley 1902 Catalog


Print Friendly, PDF & Email

The scans below are from the Stanley Rule And Level Company catalog of January 1902 As always there were a few changes to the list and a few more hand planes added, which. I've included in the introductory piece below.

NOTE: For the purposes of this site, the "Changes in List Prices", "Changes in Design" and "New Tools" are edited to reflect the changes with Planes, rather than other Stanley tools.

"January 1, 1902.
We would request that our Catalogue No. 28 be carefully examined, as it contains various changes in List Prices of important lines.
It also illustrates certain improvements in the design of Tools heretofore made, and various New Tools not previously listed.
On the Discount Sheet accompanying this Catalogue we show only the initial or base discount.
On the last pages of this Catalogue will be found a list of the goods which are regularly ordered in Original Cases.
Opposite each tool is given:

      A Code Word -- Contents of a case.
      Net and Gross Weights -- Measurements.

This list will be found useful in making up orders, insuring good packing, with the least amount of handling of the goods. The Weights and Measurements given are approximately correct, but we do not guarantee them against change.
The following are the changes to which we call your particular attention:

CHANGES IN LIST PRICES
No. 20.

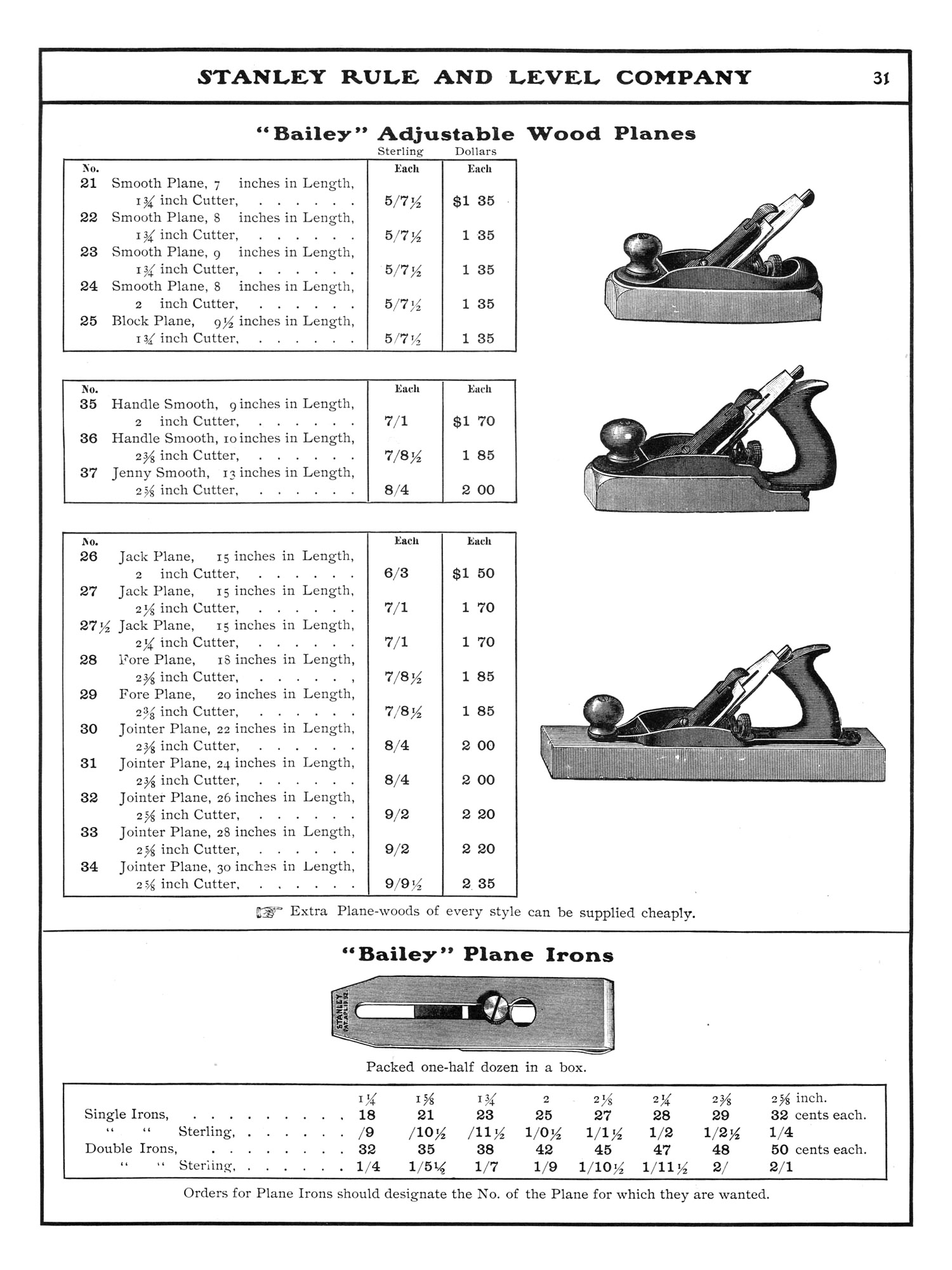

Pages 30, 31, 32, 33, 34, 35, and 36         Planes.

CHANGES IN DESIGN

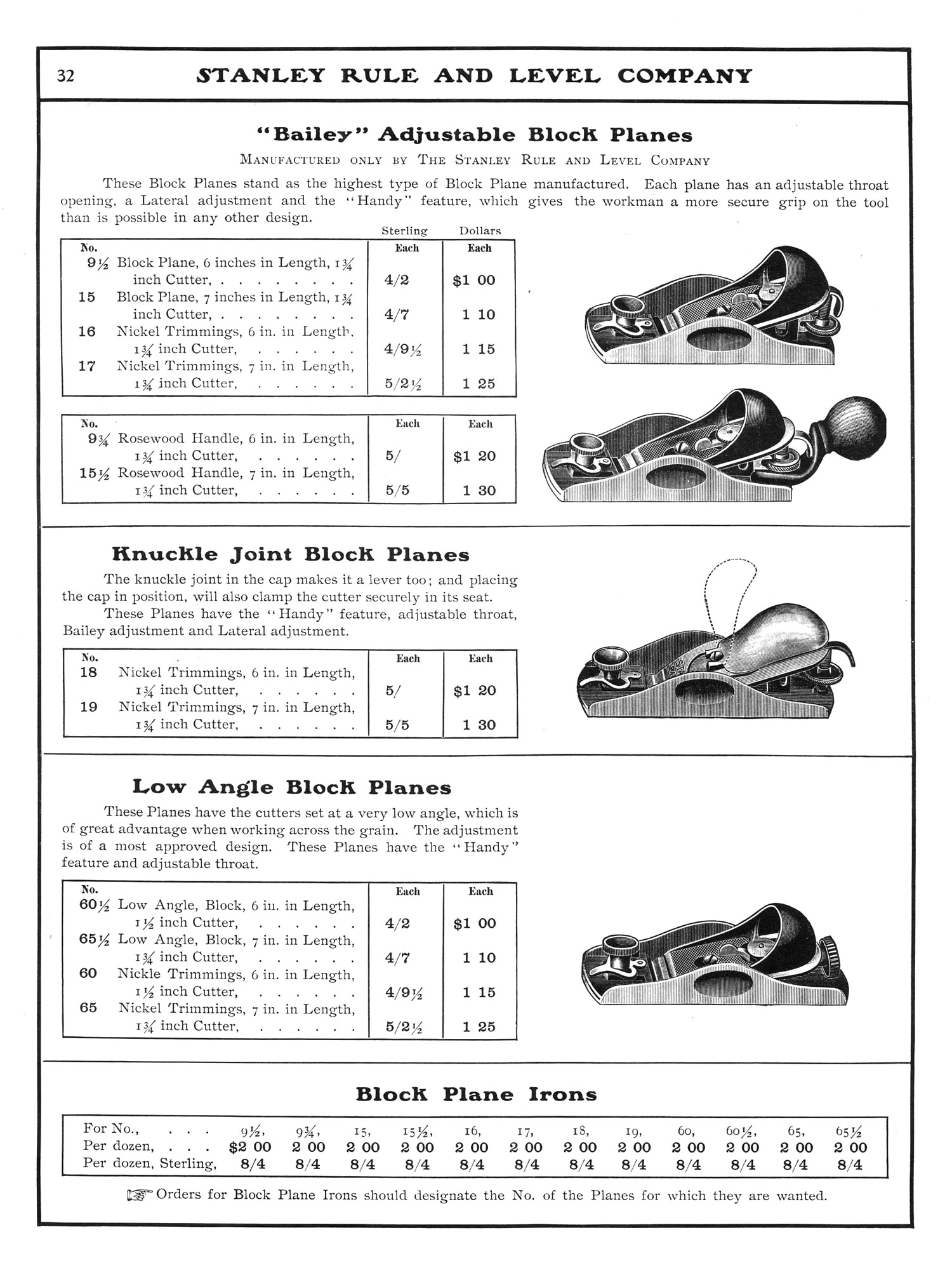

Page 32.      Planes, Nos. 60 and 65, now made with Adjustable Throat.

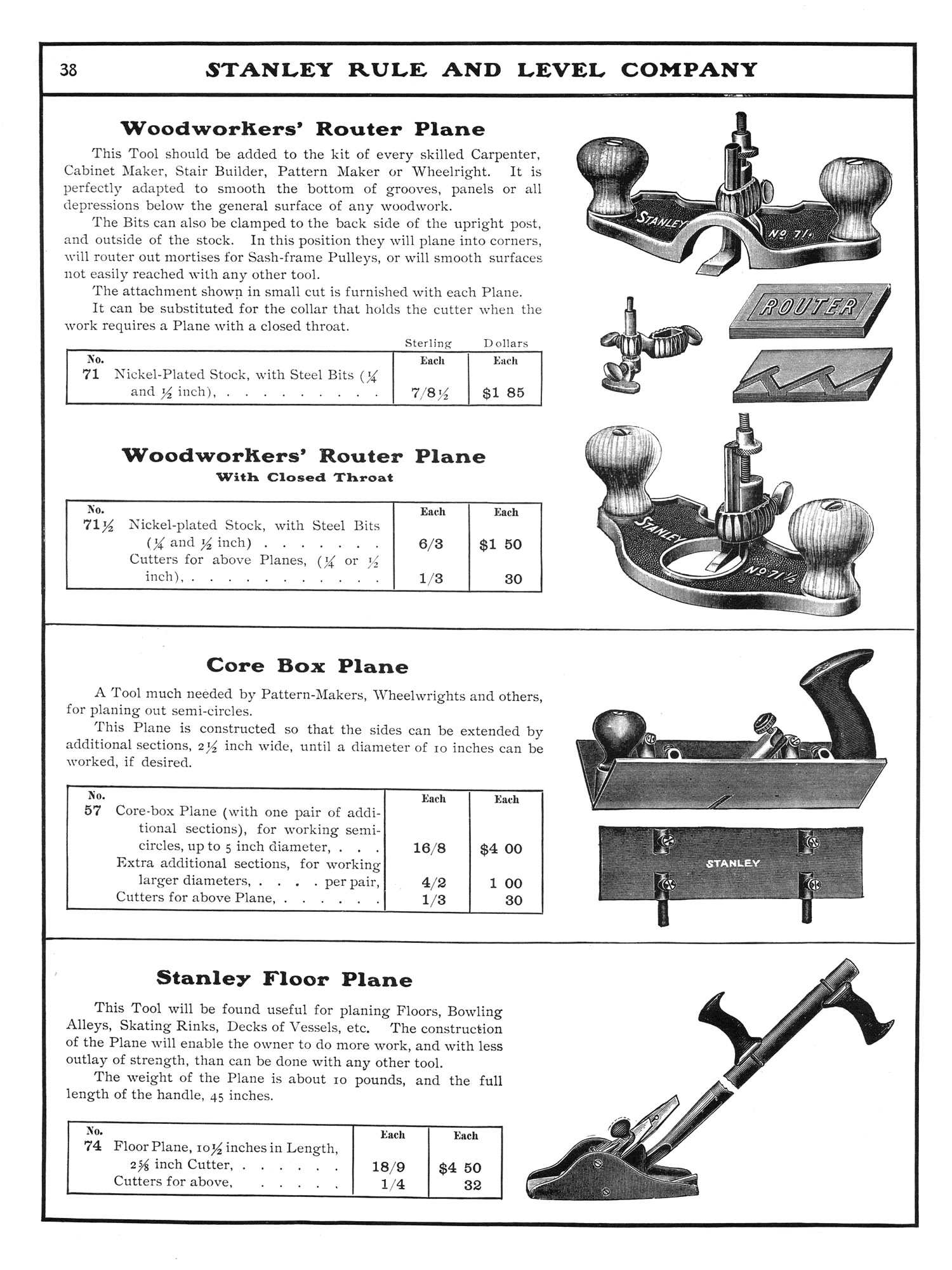

Page 38.      Planes, Nos. 71 and 72-1/2. now made with Adjustable Cutters.

NEW TOOLS
Page 26.      "Bed Rock" Planes.
Page 32.      Planes, Nos. 60-1/2 and 65-1/2, Japan Finish.

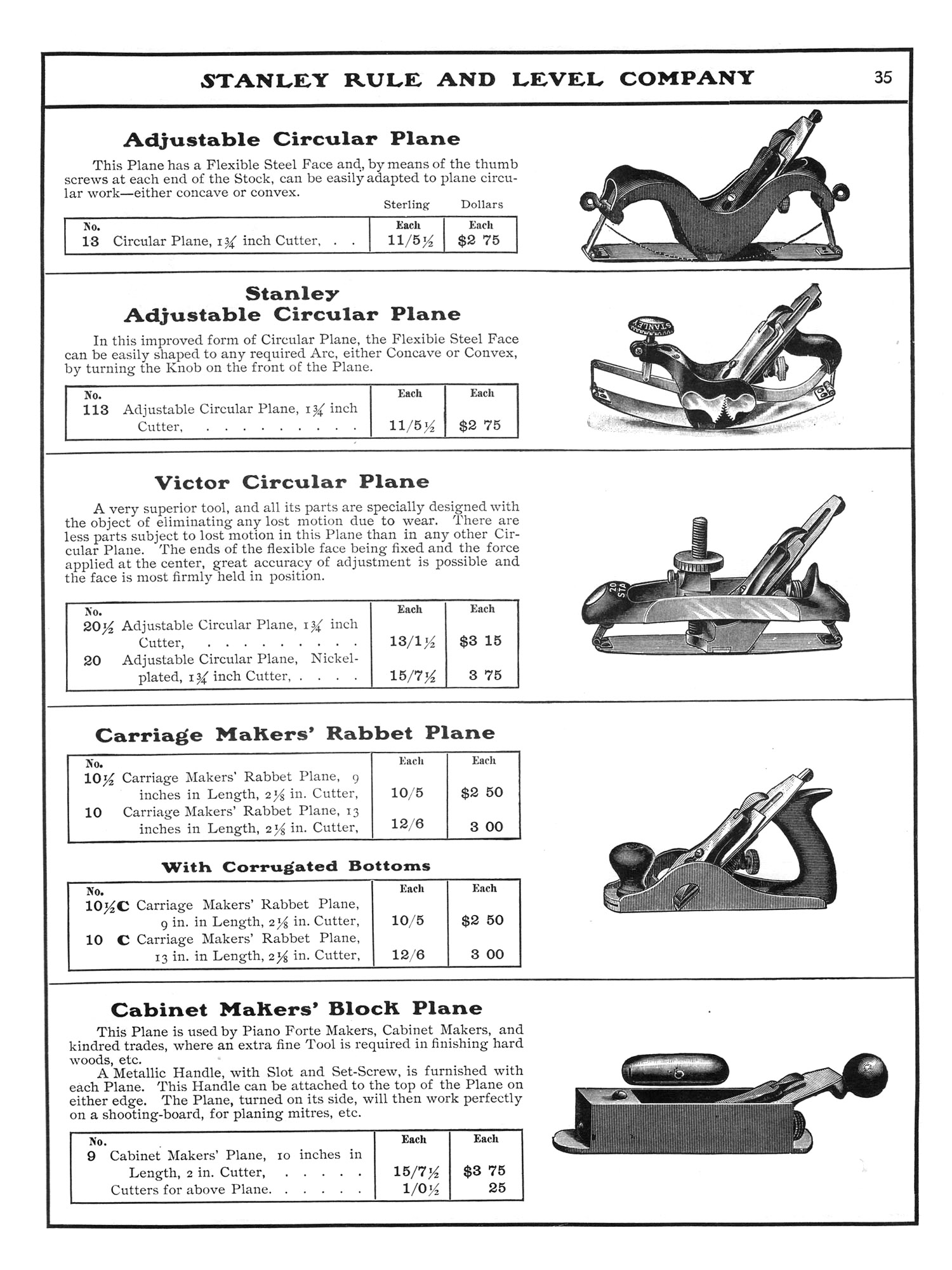

Page 35.      Planes, No. 20-1/2, Japan Finish.
Page 35.      Carriage Makers' Rabbet Planes with Corrugated bottoms (Nos. 10c and 10-1/2c).
Page 36.      Scrub Plane, No 40-1/2.

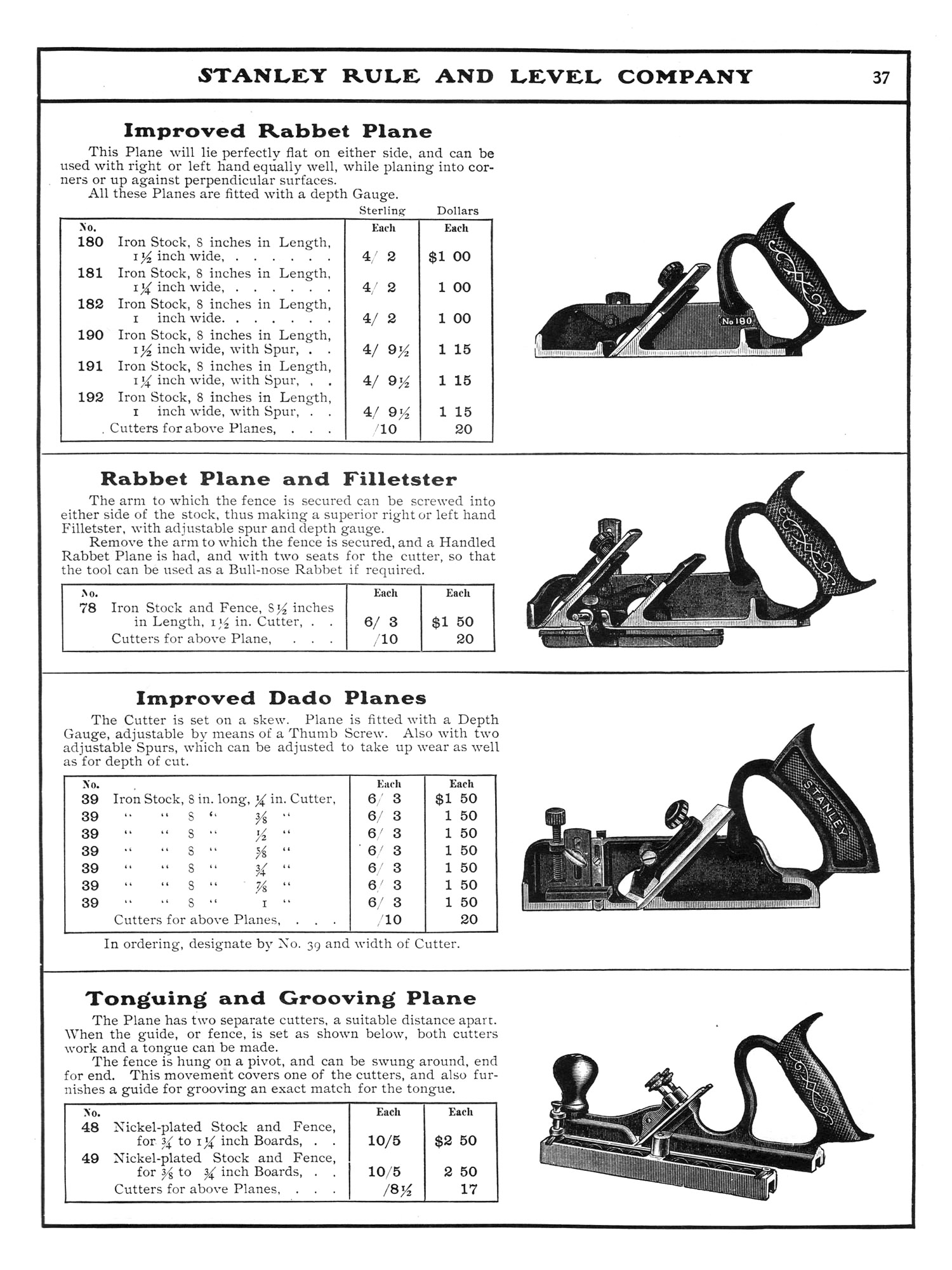

Page 37.      Dado Plane, No 39. Sizes 1/4, 3/8, 1/2, 5/8, 3/4, 7/8 and 1 inch.

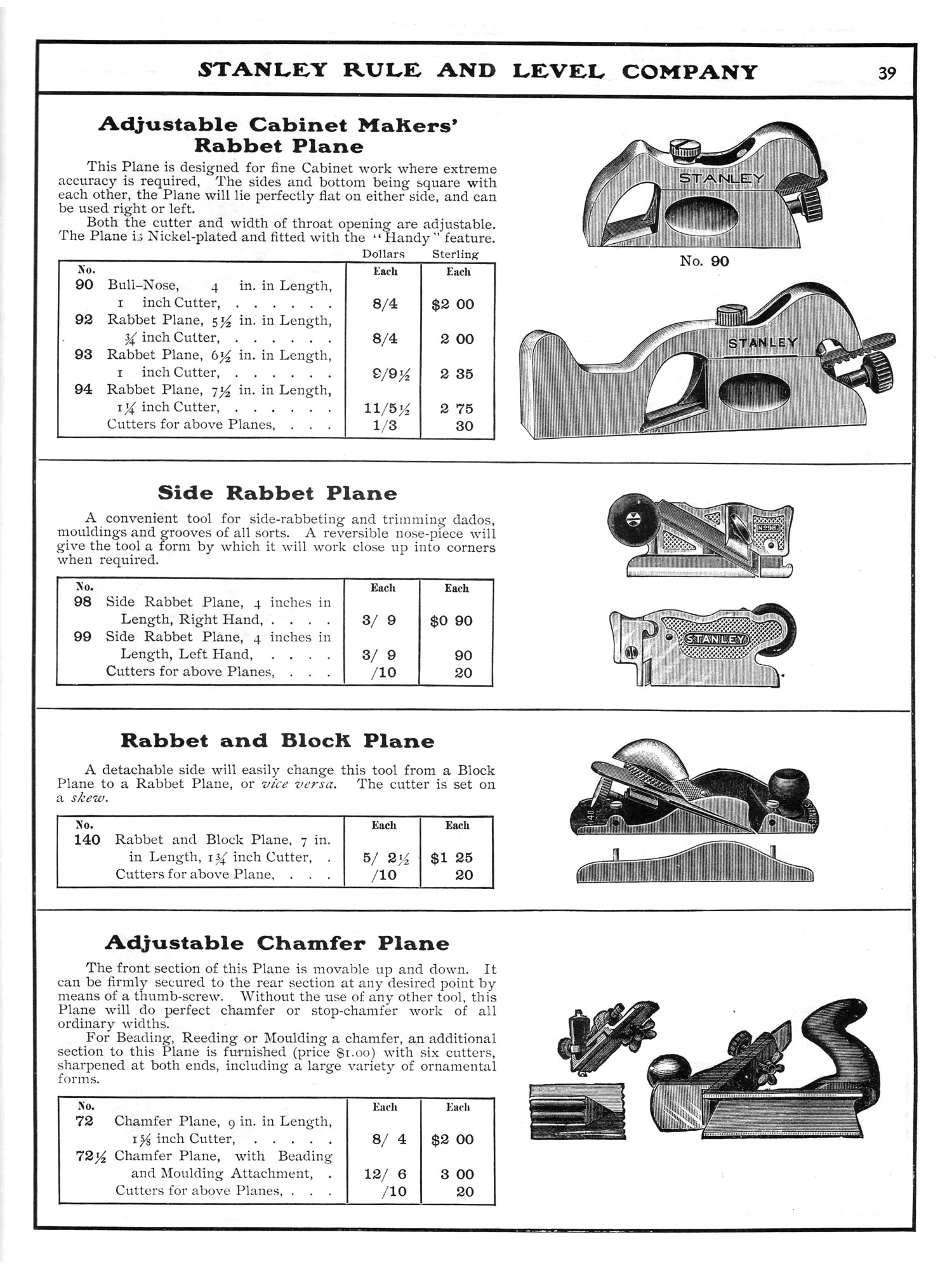

Page 39.      Cabinet Maker' Rabbet Planes, Nos. 92. 93. 94.

      Yours truly,
      STANLEY RULE AND LEVEL COMPANY"

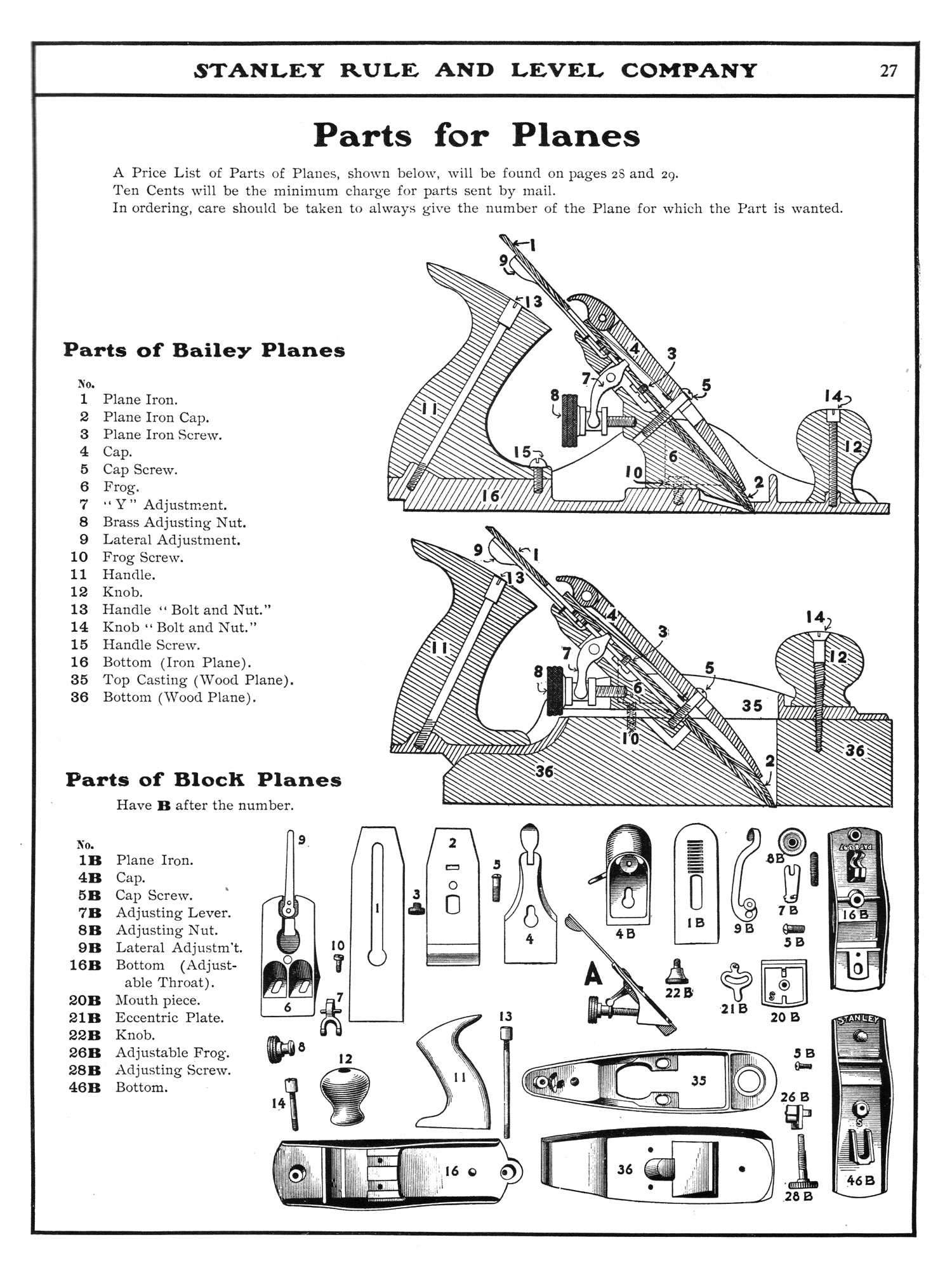

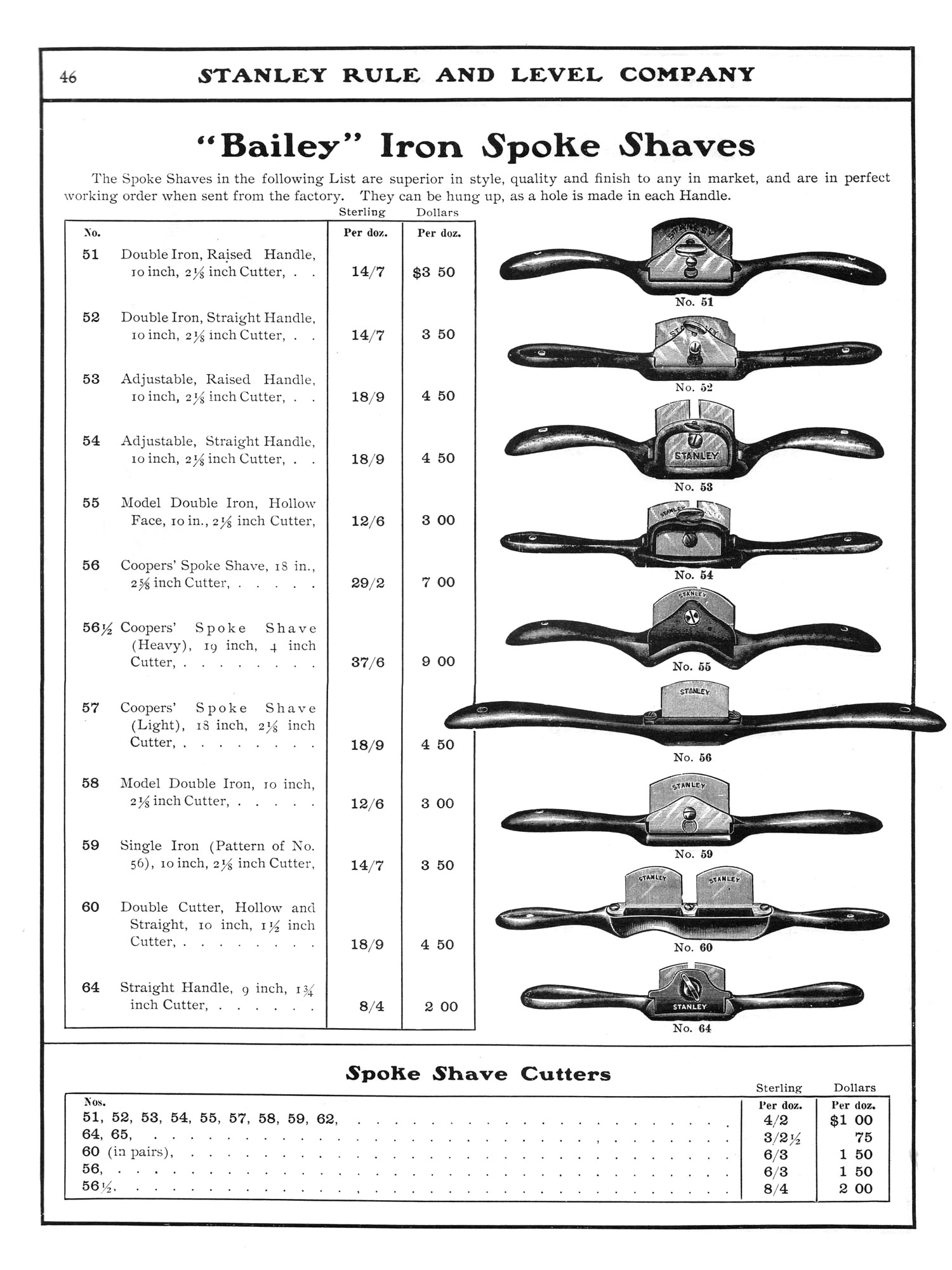

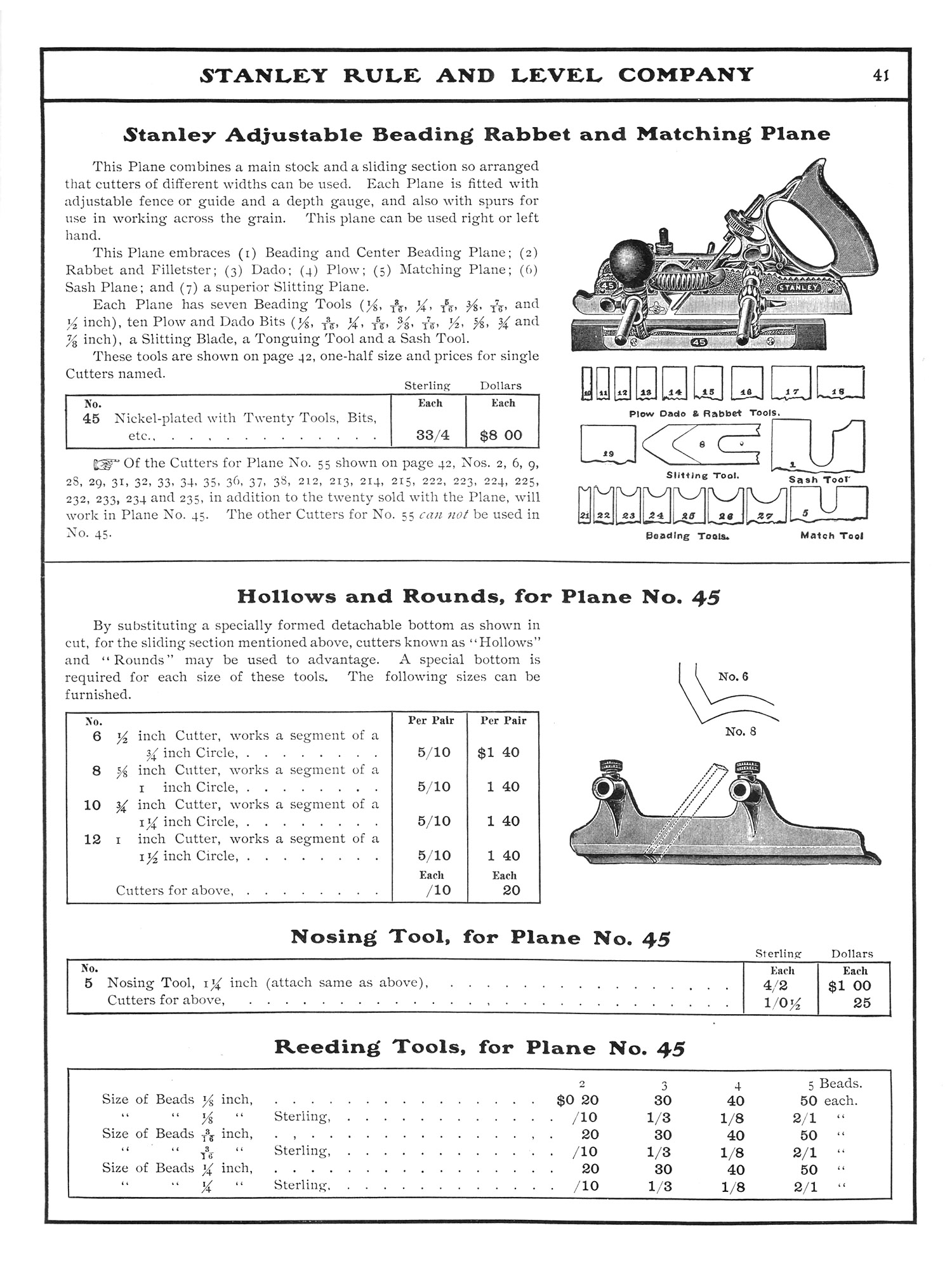

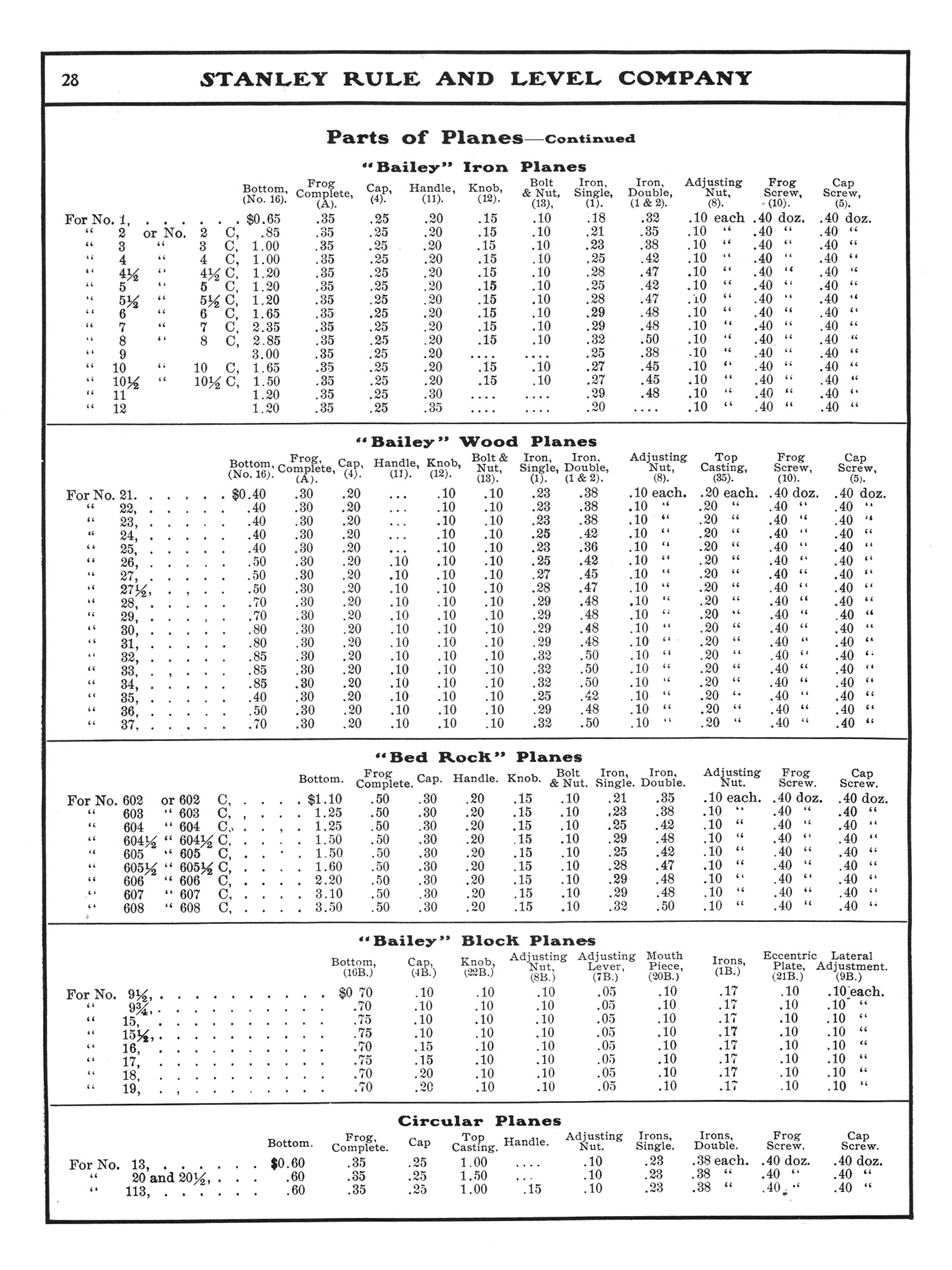

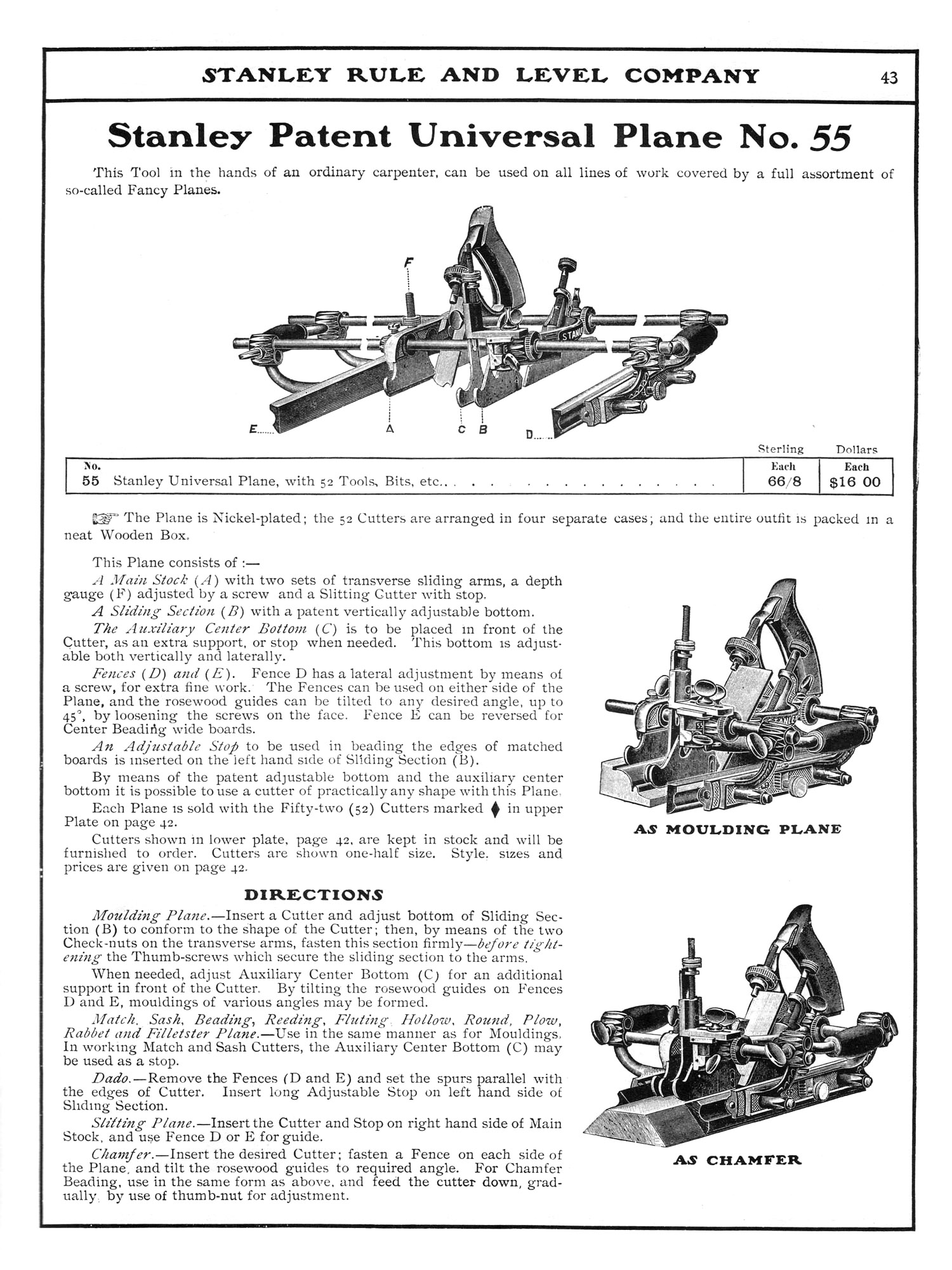

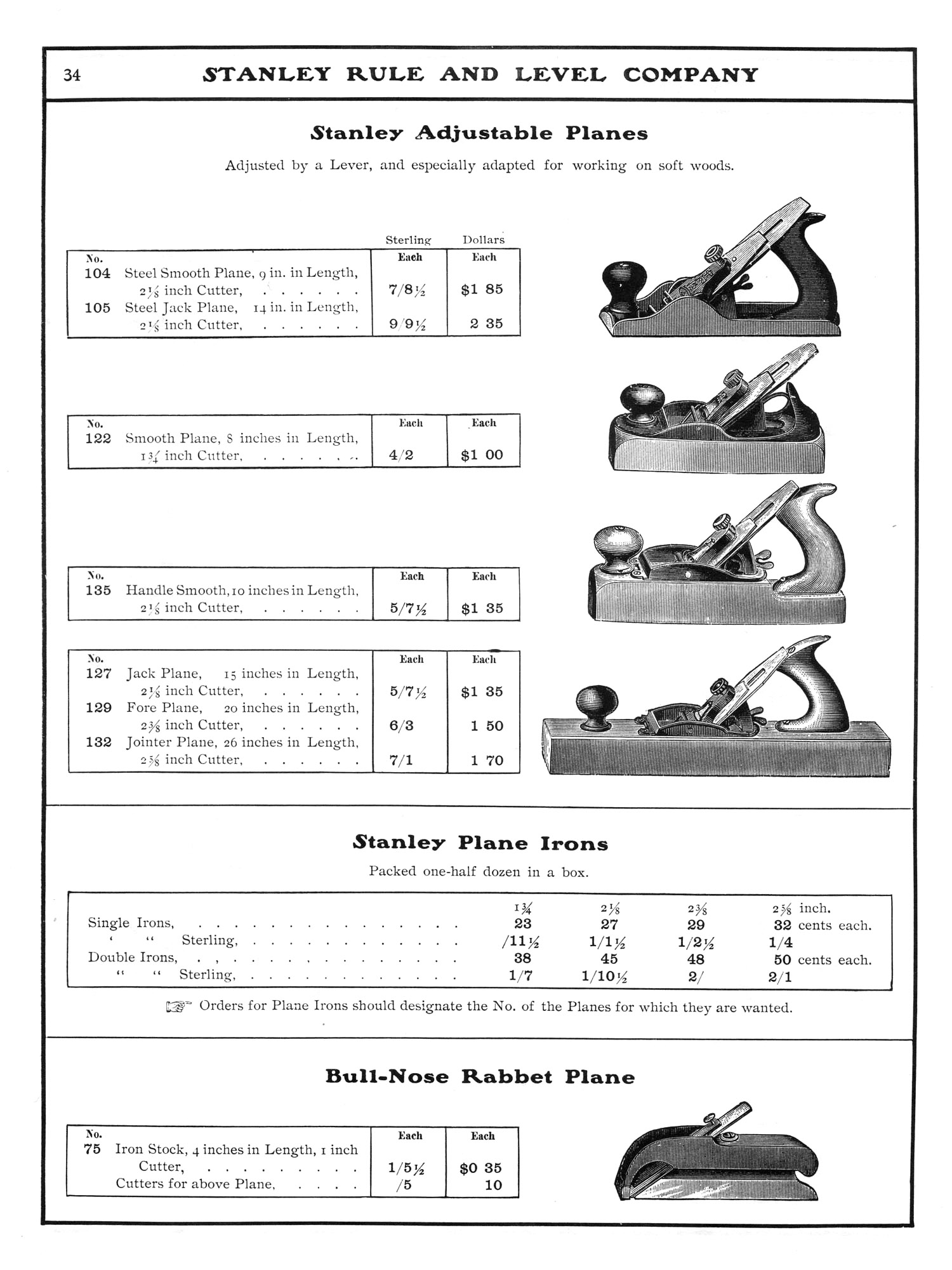

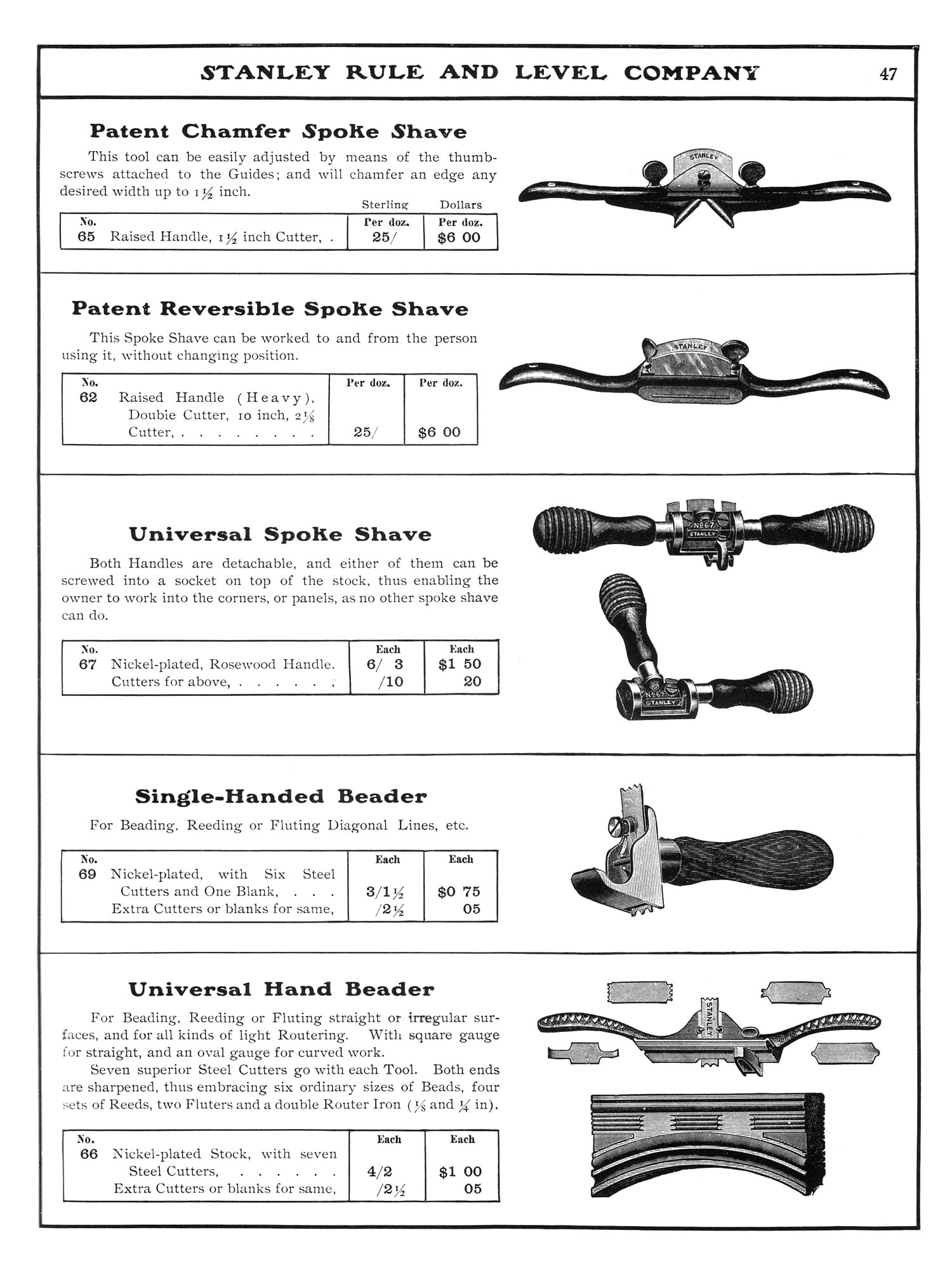

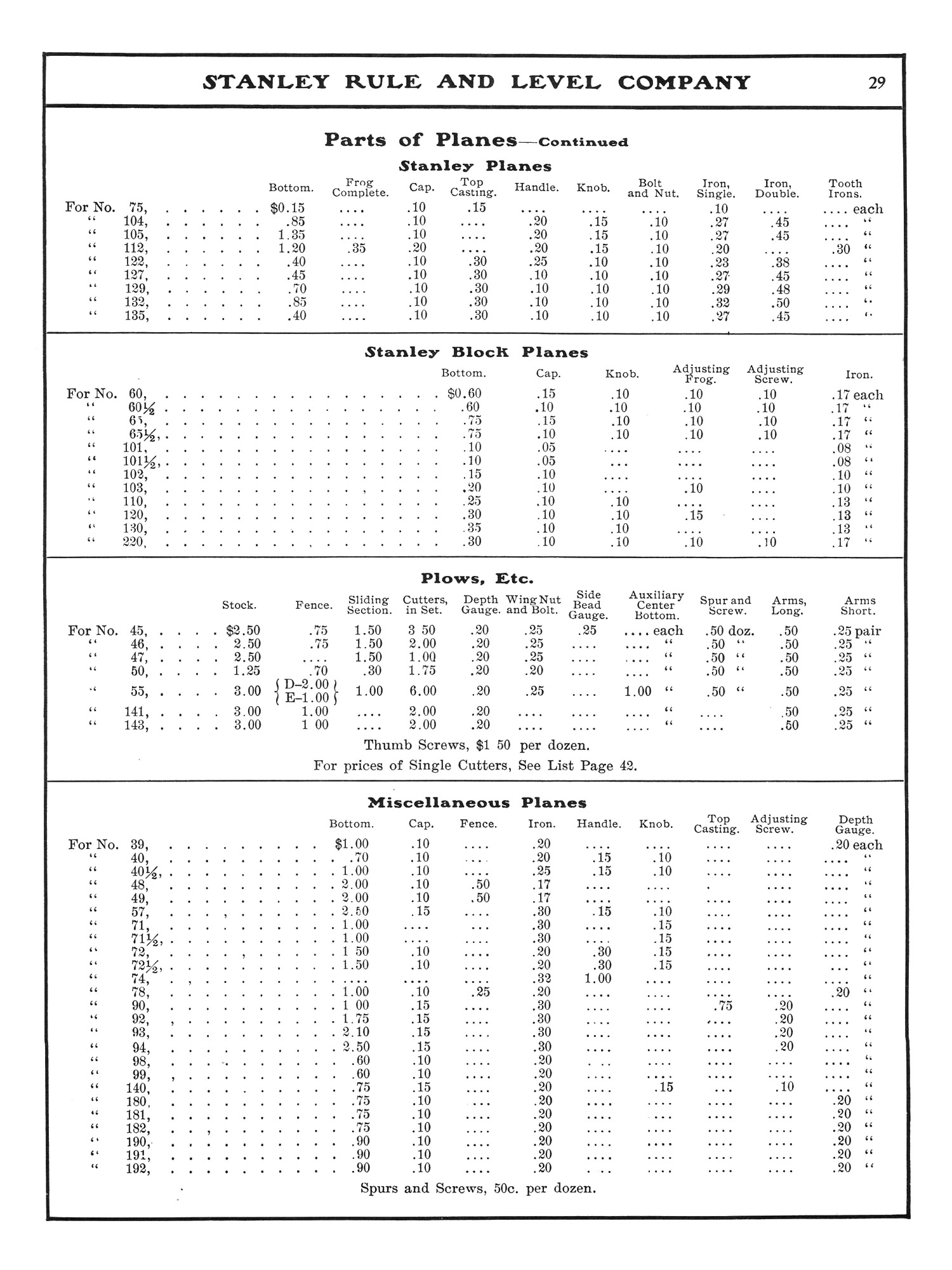

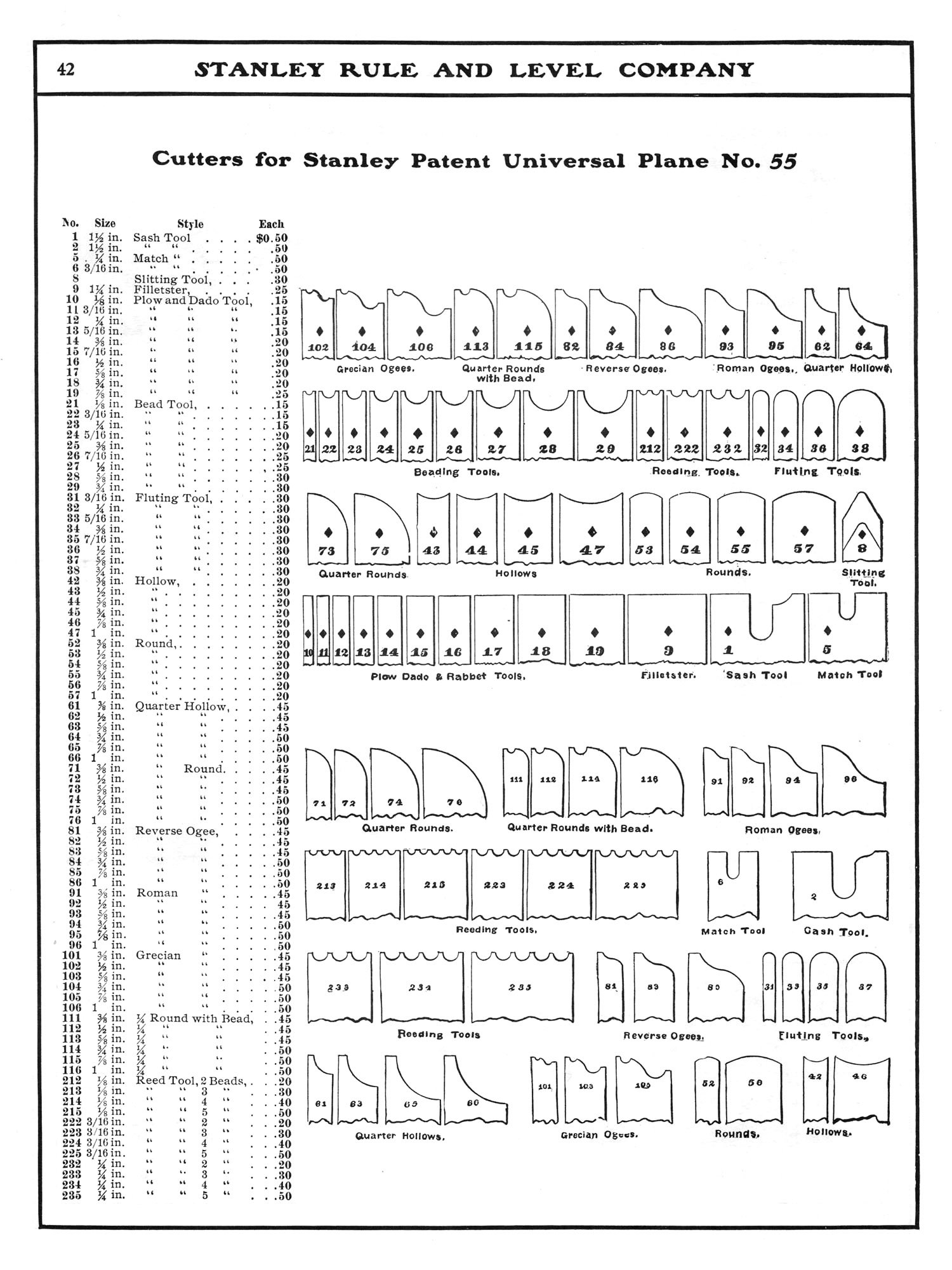

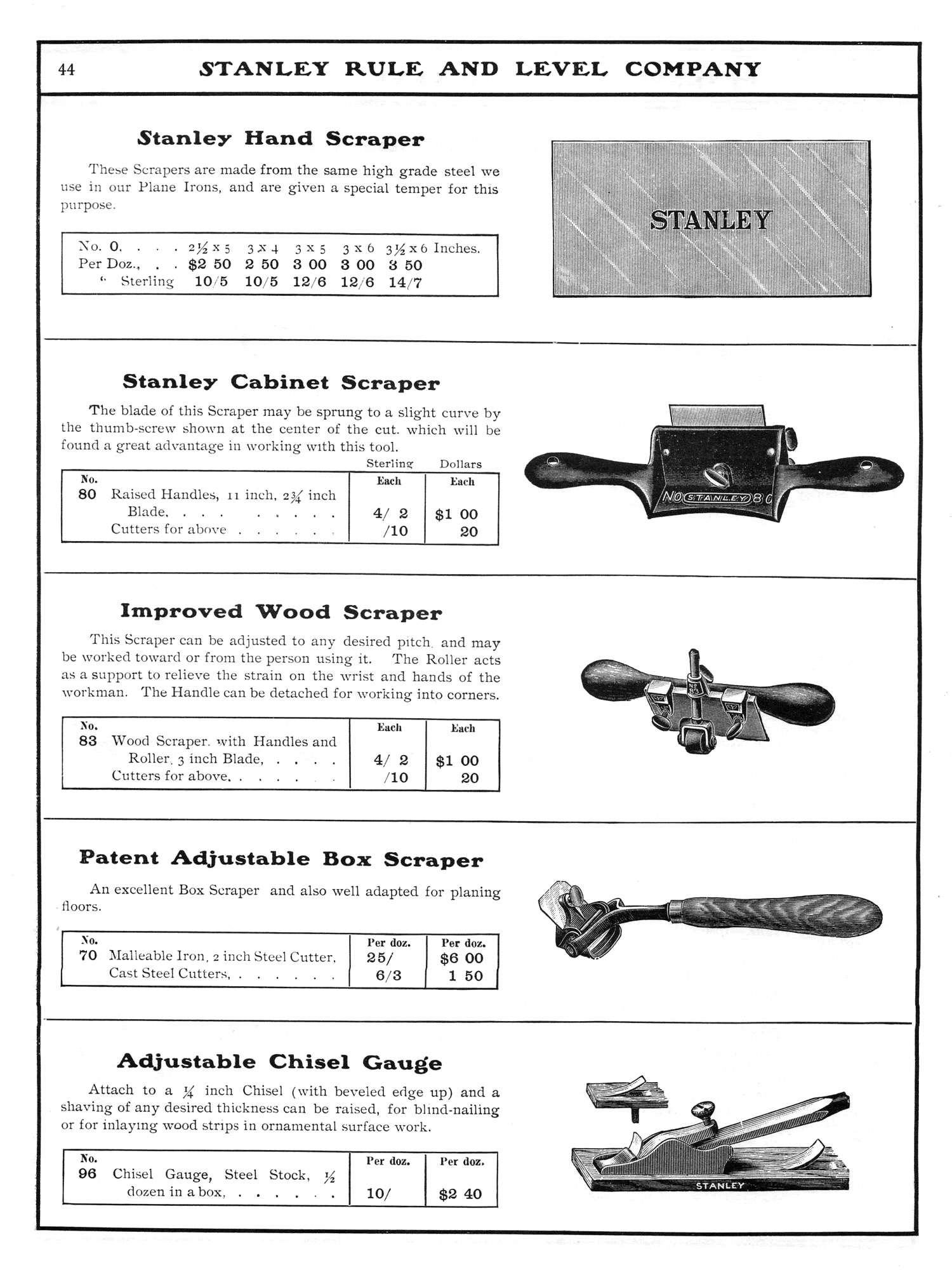

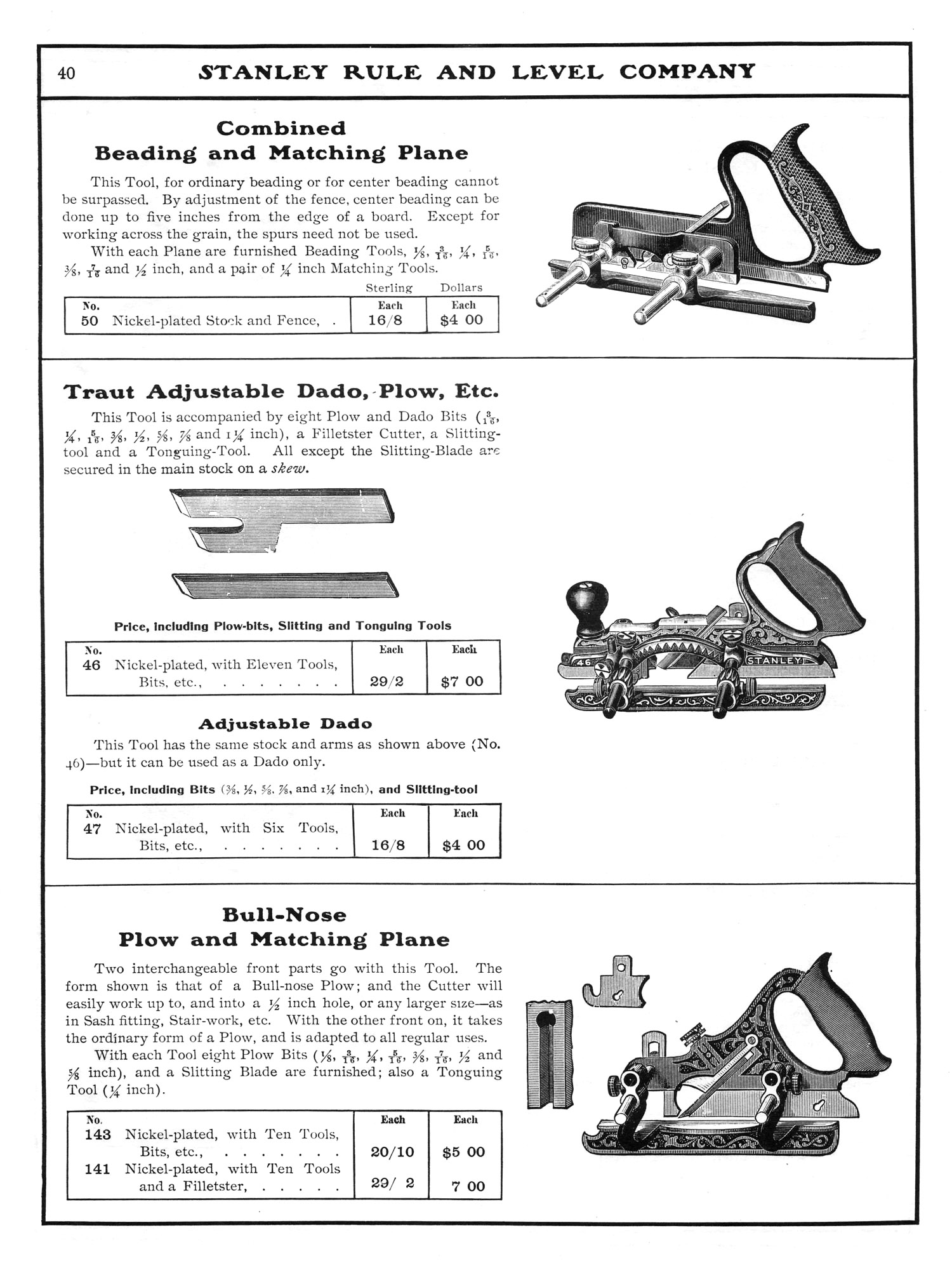

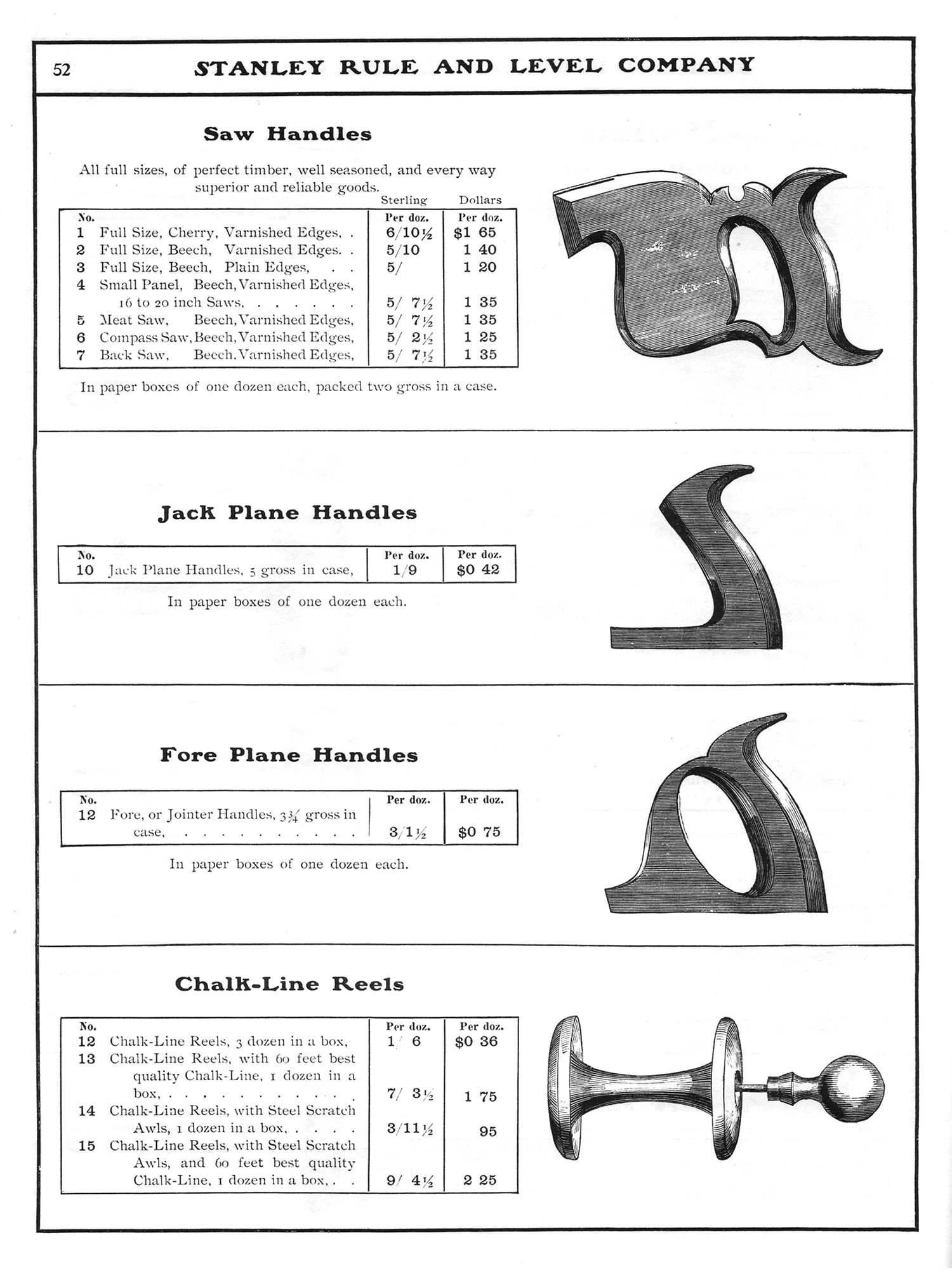

Click on each image to see a larger version of the page.
